D410 Series

4 T1/E1/J1 ports; Support protocols PRI, SS7, R2; Up to 128 channels in E1 mode or 96 channels in T1/J1 mode; 5-year warranty!

Request a Quote
  • Specifications

    OpenVox D410 Series is the worldwide affordable single port T1/E1/J1 card and delivers the great voice quality over telephony systems. It supports up to 120 voice calls or 8.192 Mbps of full duplex data throughput over four T1, E1, or J1 lines. It takes full advantage of Octasic® Hardware Echo Cancellation Module.

    The D410 Series offers an on-board Octasic® DSP-based echo cancellation module. It supports E1, T1 and J1 environments. It is selectable on a per-card or per-port basis. This feature enables signaling translation between E1 and T1 equipments and allows inexpensive T1 channel banks to connect with E1 circuits.The Octasic® DSP-based EC module enables users to eliminate echo tails up to 128ms or 1024 taps across all 128 channels in E1 mode or 96 channels in T1/J1 modes. Further, this module takes advantage of the Octasic® Voice Quality Enhancement to provide superior sound quality on all calls.

    D410 Series supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.

    D410 Series works with Asterisk®, Elastix®, FreeSWITCH, PBX in a Flash, trixbox®, Yate and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

    Target Applications

    • Voice-over Internet Protocol (VoIP) Services
    • Complex IVR Trees
    • "Meet-Me" Bridge Conferencing
    • Calling Card Platforms
    • VoIP Gateways (support SIP, H.323, and IAX)
    • Legacy PBX/IVR Services
    • Voice/Data Router (replace expensive routers)
    • PRI/Switch Compatibility - Network or CPE

    Minimum Hardware Requirement

    • 800-Mhz Pentium III
    • 128MB RAM

    Technical Specifications

    • 4 T1/E1/J1 port with PCI-Express interface for high performance voice and data applications
    • RJ48 connector


    • RoHS compliant
    • Certificates: FCC, CE and LVD

    Operating Systems

    • Linux (all versions, releases and distributions from 1.0 up)

    PRI Switch Compatibility

    • EuroISDN (PRI or PRA) - Q.931/Q.921
    • Network or CPE
    • AT&T 4ESS
    • National ISDN 2
    • CAS Voice Modes
    • DMS 100
    • Lucent 5E

    Optional Octasic® DSP Echo Cancellation Module--EC100-128

    • 128ms tail/channel (on all channel densities)
    • Octasic®  Music Protection
    • Adaptive Noise Reduction
    • Automatic Level Control (G.169)
    • Field upgradeable algorithm
    • V.25 / V.8 answer tone (w/ and w/o phase reversal)
    • DTMF as per Q.24
    • No CPU load as a result of echo cancellation.
    • Does not increase the physical size of the card, and no additional slot is required
    • EC100-128 power consumption: 0.33W/3.5W
    • Storage temperature: -40°C to 75°C



    D410 Series Digital Cards

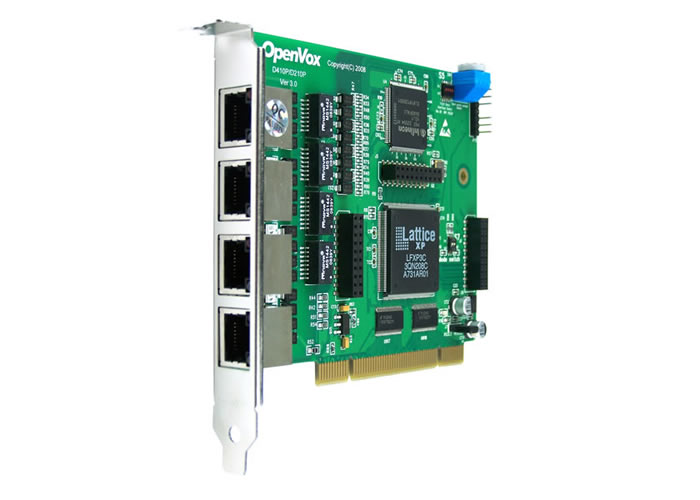

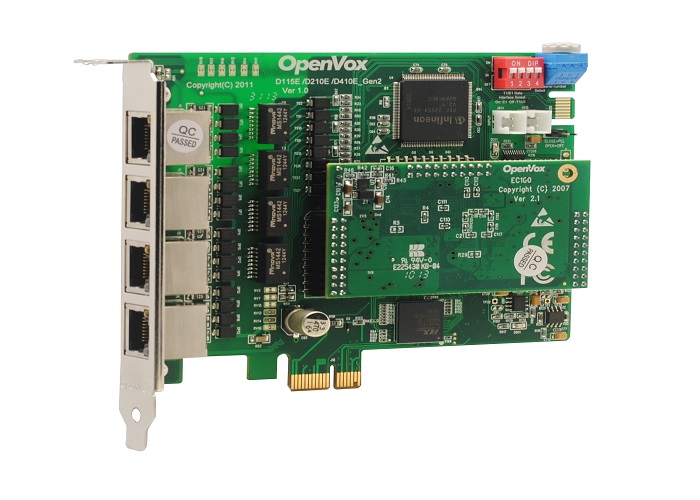

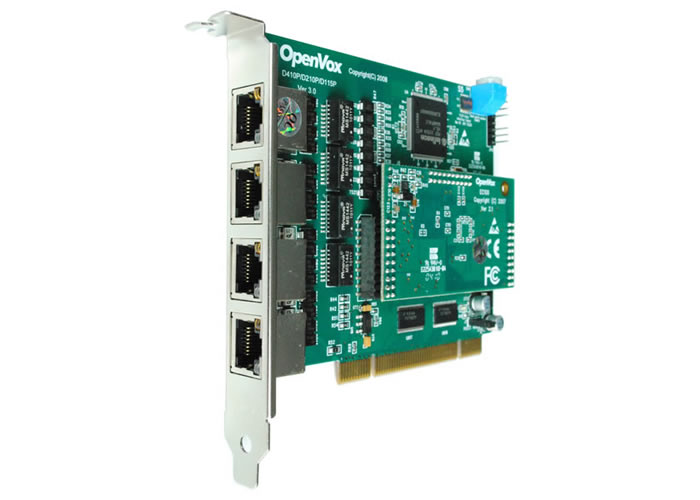

      Product Model   D410E   DE410E   D410P   DE410P
    Power Consumption 1.2W Maximum 2.83W Maximum 2.6W Minimum, 3.9W Maximum at 3.3V or 5V. 2.6W Minimum, 3.9W Maximum at 3.3V or 5V.
    Operation temperature 0°C to 50°C
    Storage temperature -65°C to 125°C
    Dimension 123mm*65mm*18mm 129mm*111mm*20mm 130mm*103mm*18mm 130mm*103mm*20mm
    Weight 95g 129g 97g 135g
    Interface PCI-E PCI-E PCI PCI
  • Features

    • Four T1/E1/J1 port with PCI-Express interface for high performance voice and data applications
    • Octasic® Hardware Echo Cancellation Module Available
    • Up to 120 Simultaneous voice calls
    • 3-Month “No Questions Asked” Return Policy
    • Five Year Warranty
