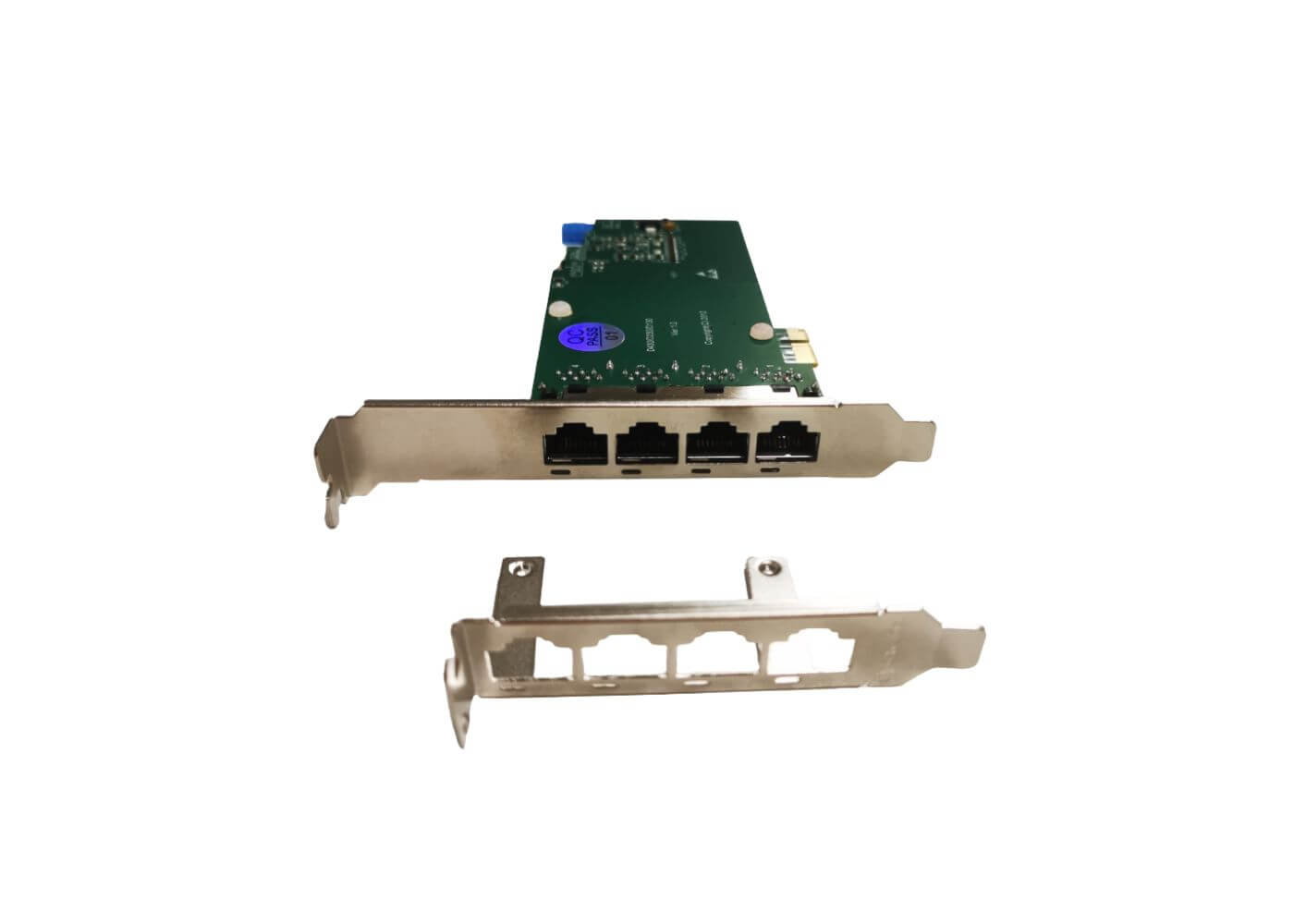

D430 Series

4 T1/E1/J1 ports;

Up to 128 channels in E1 mode or 96 channels in T1/J1 modes;

Support protocols PRI, SS7, R2;

Lifetime warranty!

Request a Quote
  • Specifications

    OpenVox D430 Series is now the leading 4 port T1/E1/J1 PCI-E card in the open source industry. It takes full advantage of Octasic® Hardware Echo Cancellation Module to deliver the superior voice quality over T1, E1, and J1 interface.

    The D430 Series is an upgrade product of the D410 Series. It’s supposed to be the most advanced 4 port T1/E1/J1 asterisk® card with superior quality in the open source community. The leading innovation ensures users to adjust the interrupts frequency to reduce the CPU load up to 70% and adjust the interrupt number to avoid interrupt number sharing or conflict.

    D430 Series offers an on-board Octasic® DSP-based echo cancellation module. It supports T1, E1, and J1 environments and is selectable on a per-card or per-port basis. The Octasic® DSP-based EC module enables users to eliminate echo tails up to 128ms or 1024 taps across all 128 channels in E1 mode or 96 channels in T1/J1 modes. Further, this module takes advantage of the Octasic® Voice Quality Enhancement to provide superior sound quality on all calls.

    D430 Series supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.

    D430 Series works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

    Target Applications

    • Voice-over Internet Protocol (VoIP) Services
    • Complex IVR Trees
    • "Meet-Me" Bridge Conferencing
    • Calling Card Platforms
    • VoIP Gateways (support SIP, H.323, and IAX)
    • Legacy PBX/IVR Services
    • Voice/Data Router (replace expensive routers)
    • PRI/Switch Compatibility - Network or CPE

    Technical Specifications

    • 4 T1/E1/J1 ports with PCI interface for high performance voice and data applications
    • RJ48 connector
    • FPGA design, upgradeable firmware onsite
    • Power Consumption: 2.6W Minimum, 3.9W Maximum at 3.3 V or 5 V.
    • Operation temperature: 0°C to 50°C
    • Dimension: 2U Form factor: 12*6.4*1.8cm

    Minimum Hardware Requirement

    • 800-Mhz Pentium III
    • 128MB RAM


    • RoHS Compliant
    • Certificates: FCC, CE and CS-03

    PRI Switch Compatibility

    • EuroISDN (PRI or PRA) - Q.931/Q.921
    • Network or CPE
    • AT&T 4ESS
    • National ISDN 2
    • CAS Voice Modes
    • DMS 100
    • Lucent 5E

    Optional Octasic® DSP Echo Cancellation Module—EC2128

    • 128ms tail/channel (on all channel densities)
    • Octasic® Music Protection
    • Adaptive Noise Reduction
    • Automatic Level Control (G.169)
    • Field upgradeable algorithm
    • V.25 / V.8 answer tone (w/ and w/o phase reversal)
    • DTMF as per Q.24
    • No CPU load as a result of echo cancellation.
    • Does not increase the physical size of the card, and no additional slot is required
    • EC2128 power consumption: 0.33W/3.5W
    • Operation temperature: 0 to 50°C




    D430 Series Digital Cards
      Product Model   D430E   D430P   DE430E   DE430P
    Storage temperature -65~125°C -40~75°C
    Weight 94g 98g 104g 108g
    EC module no
    Interface PCI-E PCI PCI-E PCI
  • Features

    • Industry 1st adjustable interrupt routing design
    • Interrupts frequency adjustment
    • Compatible with All Commercially Available Motherboards
    • 4 T1/E1/J1 ports with PCI interface for high performance voice and data applications
    • Octasic® Hardware Echo Cancellation Module Available
    • 3-Month “No Questions Asked” Return Policy
    • Lifetime warranty
